How to use GPIO on ASR-A501 & AFE-RM02 (similar to RSB-3810/3720)

Technical Supports
1

Hello,

Could you please provide documentation about GPIO usage on the ASR-A501 and AFE-RM02?
I am looking for details similar to the GPIO pin/number mapping shown in the RSB-3810 and RSB-3720 wikis:

RSB-3810 wiki (GPIO Testing Method):

RSB-3720 wiki (GPIO Operating Method):

Thanks.

2

HI Sir ,

Since the AFE-RM02 content is currently integrated into the overall AFE-RM761 manual, kindly refer to the following chart.

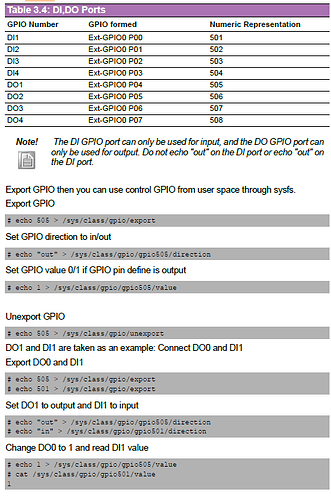

image478×721 46.6 KB

1 Like
3

Thank you for your prompt reply and for providing the reference.
